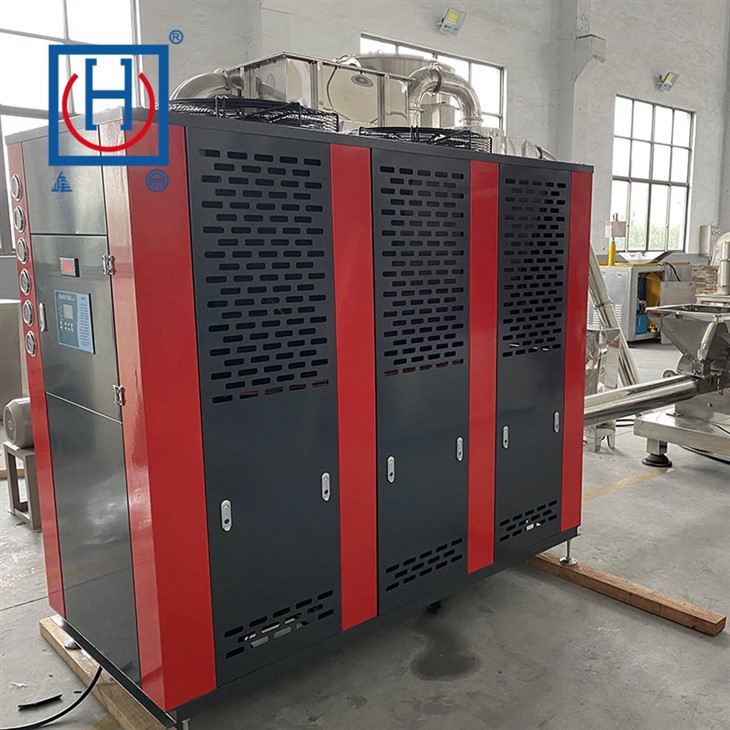

Ultra Low Temperature Air Cooler
video

Ultra Low Temperature Air Cooler

The DLF series ultra-low temperature air cooler can be widely used in fields such as medicine, food, and chemical industry, mainly for crushing and quick freezing materials with special processes, special materials, and high requirements for heat loss sensitivity.
Send Inquiry
Chat Now
Product Introduction
Introduction



Overiew:

The DLF series ultra-low temperature air cooler can be widely used in fields such as medicine, food, and chemical industry, mainly for crushing and quick freezing materials with special processes, special materials, and high requirements for heat loss sensitivity.

product-850-517

Characteristic



1. Using a reciprocating refrigeration unit, the refrigeration temperature can reach below -70 degrees Celsius, and the outlet temperature can reach -50 to -10 degrees Celsius.
2. The air volume can be adjusted according to actual requirements.
3. The air is pre treated with dust removal, cooling, and dehumidification. On the one hand, the air is pre cooled, and on the other hand, it can avoid frosting on the fins of the refrigeration heat exchanger, which affects the heat exchange efficiency
And air volume.
4. Automation is refreshing. Even if the dehumidifier does not completely remove humidity and there is frost on the heat exchanger of the refrigeration unit, the air cooler can still perform automatic frost to ensure heat exchange efficiency and air volume.



Technical parameters



机器型号machine model

DLF30

DLF35

DLF40

DLF45

DLF50

标准制冷量
Standard refrigerating capacity



W

3000

3500

4000

4500

5000

Btu/h

10320

12040

13760

15480

17200

Kcal/h

2584

3014

3445

3876

4306

电源power

380V50Hz

380V50Hz

380V50Hz

380V50Hz

380V50Hz



压缩机

高温级high temperature stage



输入功率w
Input power

3000

3500

4000

4500

5000

名义马力HP
Nominal horse powe

4

5

6

7

7

低温级low temperature stage

输入功率w
Input power

1800

2100

2400

2700

3000

名义马力HP
Nominal horse power

3

3

4

4

4

zui大风量m³/h maximum air flow

2000

2500

2800

3200

3500

zui大风压pa maximum air pressure

250

250

250

250

250

出风温度℃ outlet air temperature

-50~-10

-50~-10

-50~-10

-50~-10

-50~-10

FAQ



1. Q:Are you a manufacturer, trading company or a third party?

A:We are a manufacturer,we have our own factory



2. Q:About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

A:The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.



3. Q:How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,however it is charged. Any problem, you can call us directly.
