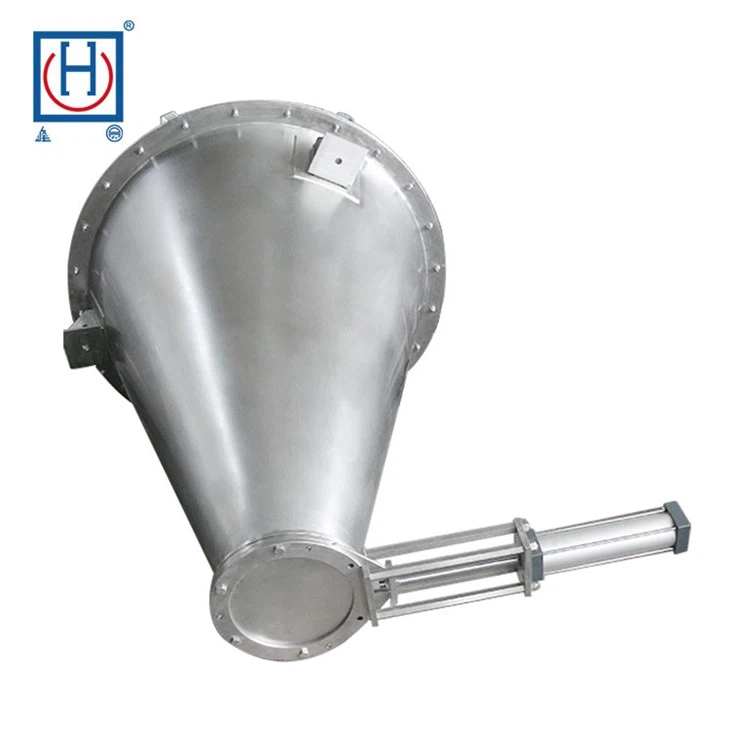

Conical Screw Mixer
Introduction
Main Application:
Conical screw mixer is a new type of high-efficiency and high-precision mixing equipment, which is widely used for mixing various powders in pharmaceutical, chemical, feed and other industries.
Characteristics:
Conical screw mixer is equipped with a set of motor and cycloidal pinwheel reducer, with large mixing range and fast mixing speed.
Working principle
The downward flow of powder particles caused by spiral rotation is precisely due to the combination of spiral rotation in the mixer, which forms four flow forms of powder: that is, the composite movement of convection, shear, diffusion and infiltration. Therefore, the powder can be quickly mixed evenly in the mixer.
Technical parameters
|
Model |
SHJ100 |
SHJ300 |
SHJ500 |
SHJ1000 |
SHJ2000 |
SHJ3000 |
SHJ4000 |
SHJ5000 |
SHJ6000 |
|
Production Capacity(kg/time) |
40 |
100 |
210 |
420 |
850 |
1300 |
1600 |
2100 |
2500 |
|
Total volume(m) |
0.1 |
0.3 |
0.5 |
1 |
2 |
3 |
4 |
5 |
6 |
|
Loading coeefficient |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Material Size(mesh) |
20-350 |
20-350 |
20-350 |
20-350 |
20-350 |
20-350 |
20-350 |
20-350 |
20-350 |
|
Motor power(kw) |
2.2 |
3 |
4 |
5.5 |
11 |
15 |
18.5 |
22 |
30 |
|
Weight(kg) |
300 |
600 |
800 |
1200 |
1800 |
2200 |
2600 |
3000 |
3500 |
FAQ
1. Q: How long is the production cycle?
A: 35-40 days
2. Q: What are your terms of payment?
A: T/T or L/C
3.What's your pre/after-sale service ?
① Professional advice and rich experience help to choose machine.
② Longtime maintenance and considerate technical support
③ Technicians can be sent to abroad to install.
④ One year guarantee. Whole life service. Within 1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
⑤ Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
⑥ Video / CD of test running and installation, Manual book.
