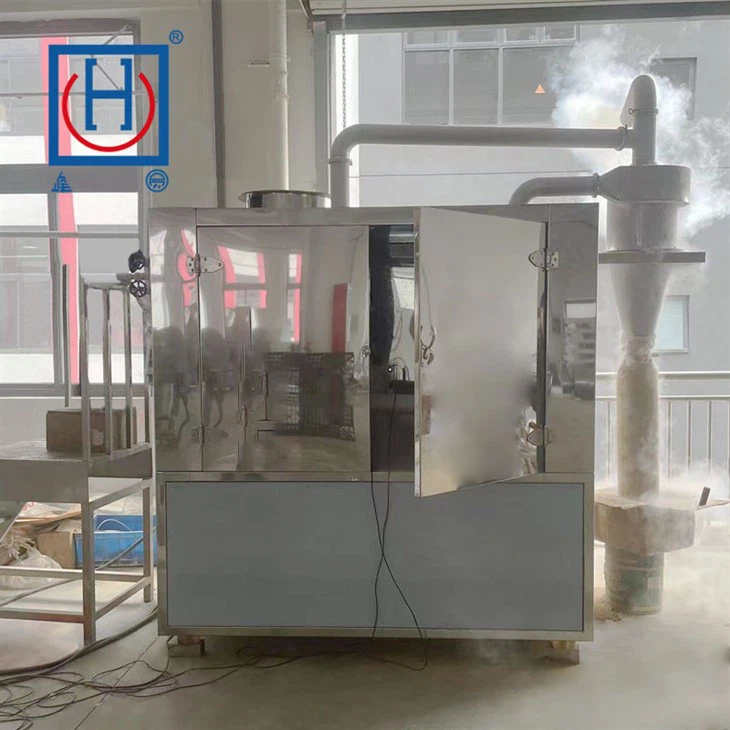

Cryo Grinding Mill

The cryo grinding mill machine is a specialized milling system that uses low temperatures, typically achieved through liquid nitrogen or other cryogenic gases, to process materials that are sensitive to heat. This technique is primarily used to grind heat-sensitive, brittle, or tough materials, making them easier to handle and reducing the risk of degradation during the grinding process.
Send Inquiry
Chat Now
Product Introduction
Introduction



The cryo grinding mill machine is a specialized milling system that uses low temperatures, typically achieved through liquid nitrogen or other cryogenic gases, to process materials that are sensitive to heat. This technique is primarily used to grind heat-sensitive, brittle, or tough materials, making them easier to handle and reducing the risk of degradation during the grinding process.
Cryo grinding involves cooling materials to extremely low temperatures often below -100°C. By using liquid nitrogen, materials become more brittle, allowing for more efficient grinding without the risk of heat buildup, which can alter or degrade the material's properties.



6



Application



product-850-850



Technical parameters



Model WF-200 WF-350 WF-450
Capacity(mm) φ200 φ350 φ450
Rotary Speed(kw) 11.25 43.25 54
Dia of Rotor Liquid nitrogen Liquid nitrogen Liquid nitrogen
Motor Power(℃) ≥-196 ≥-196 ≥-196
Output Fineness(mesh) 10-500 10-500 10-500
Feeding Granularity(kg/h) 30-100 80-500 100-800
Size of input Granules(mm) ≤8 ≤8 ≤8
Maximum Revolution Speed of Spindel(rpm) 0-6700 0-5200 0-4000
Dimensions(mm) 1700*1000*1650 2500*2000*2500 2800*2000*2700



FAQ



1. Q: Can cryo grinding mill be used for all materials?
A: No, cryo grinding mill machine is most effective for brittle or tough materials that tend to deform or degrade under heat. Materials that do not become brittle under low temperatures or those that are already soft may not benefit from cryo grinding.



2. Q: Is cryo grinding environmentally friendly?
A: The cryo grinding mill is relatively environmentally friendly compared to other methods that generate excessive heat or use toxic chemicals. However, the use of liquid nitrogen (which is energy-intensive to produce) can have an environmental impact, depending on the source of nitrogen.



3. Q: How is cryo grinding mill machine different from regular grinding machine?
A: The key difference is the use of low temperatures to make materials brittle before grinding. In regular grinding, heat can cause materials to melt, deform, or degrade. In contrast, cryo grinding mill prevents these issues and ensures that heat-sensitive materials retain their integrity.
