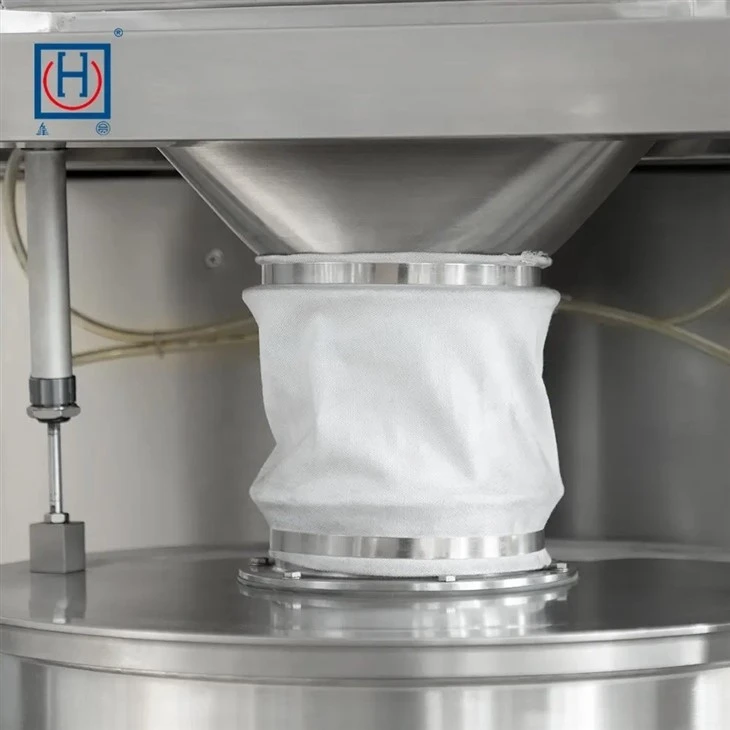

Garlic Powder Machine
Introduction
The garlic powder machine is a specialized device used to grind dried garlic cloves into powdered form. This machine is commonly used in food processing and pharmaceutical industries, as well as in home kitchens and commercial settings where powdered garlic is required.
Working principle
The garlic powder machine is composed of three parts: frame, crushing chamber and hopper. The main shaft is equipped with an active tooth plate, the active tooth plate is equipped with an active knife, the fixed tooth plate is installed in the crushing door, the fixed tooth plate is equipped with a fixed tooth ring with steel teeth, the active knife on the active tooth plate and the fixed tooth ring are interwoven. When the spindle is running at a high height, the movable gear sleeve is relatively running, and the material is crushed under the comprehensive action of mutual impact, friction, shear and impact between the fixed teeth and the movable teeth. The crushed material can be discharged directly from the main machine crushing chamber, and the particle size can be obtained by replacing the screen with different pore sizes.
Features
1. This garlic powder machine is suitable for crushing and drying brittle materials, not for crushing and softening materials with low point and large viscosity.
2. Commonly used in fruit and vegetable powder such as: chili powder, ginger powder, garlic powder, onion powder, etc.
3. Garlic powder machine can also be used for the processing of nut powder, such as walnut powder.
4. Can also be used for the processing of spice powder;
5. Stainless steel material, powder effect is good.
Technical Parameters
|
Model |
WF-15C |
WF-20C |
WF-30C |
WF-40C |
|
Prodution Capacity(kg/h) |
10-50 |
60-150 |
100-300 |
160-800 |
|
Output Fineness(mesh) |
40-120 |
40-120 |
40-120 |
40-120 |
|
Motor Power (kw) |
2.2 |
4 |
7.5 |
11 |
|
Spindle Speed (r/min) |
7600 |
4500 |
4000 |
3400 |
|
Weight(kg) |
170 |
320 |
380 |
550 |
FAQ
1. Q: What is a garlic powder machine?
A: The garlic powder machine is a specialized equipment designed for grinding dried garlic cloves into fine powder. It allows for uniform grinding of garlic flakes or cloves into powdered form, which is convenient for culinary, medicinal, or industrial uses.
2. Q: What types of garlic can be processed using a powder mill machine?
A: The machine can process various types of garlic, including fresh garlic cloves that have been dried or dehydrated garlic flakes.
3. Q: Can garlic powder machines process other spices or ingredients?
A: Some machines may be versatile enough to process other dried herbs or spices, but it's essential to check the manufacturer's recommendations for specific capabilities.
