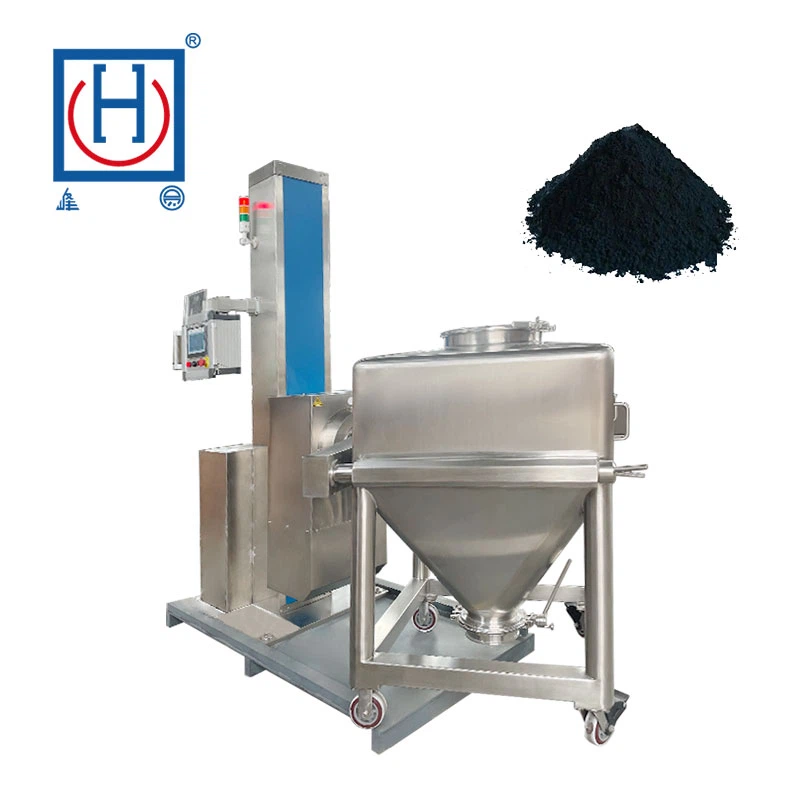

Graphite Powder Lift Mixer
Introduction
Graphite powder lift mixer is specially designed for blending graphite powder with other materials or unifying different batches of graphite powder. Graphite powder has a wide range of applications in metallurgy, electronics, lubricating oil and other fields. The mixer's role is to ensure a uniform dispersion of graphite powder, which is essential to ensure consistent product quality in applications where graphite is a key ingredient.
Working principle
During the operation of the graphite powder lift mixer, the lifting device of the graphite powder mixer starts synchronously with the stirring device. Graphite powder enters the mixing chamber through the feed inlet. The lifting screw transports the powder upwards from the bottom of the cavity, during which the stirring device breaks down any condensed lumps and evenly distributes the powder. Subsequently, the powder falls back to the bottom of the cavity, and this process repeats itself. This continuous cycle stirring mechanism ensures thorough mixing of graphite powder with other components and guarantees the uniformity of the mixture.
Technical parameters
| Model | DTH-100 | DTH-200 | DTH-300 | DTH-400 | DTH-600 |
| Maximum hopper capacity(L) | 100 | 200 | 300 | 400 | 600 |
| Maximum loading capacity(L) | 80 | 160 | 240 | 320 | 480 |
| Maximum loading weight(Kg) | 50 | 100 | 150 | 200 | 300 |
| Spindle speed(rpm) | 3-20 | 3-20 | 3-20 | 3-15 | 3-15 |
| Power(Kw) | 1.5 | 3 | 3 | 4 | 4 |
| Total weight(kg) | 600 | 800 | 1000 | 1200 | 1400 |
| Overall Dimension(L×W×H)(mm) | 2300×1500×1500 | 2500×1800×2000 | 2500×1900×2100 | 2600×2100×2300 | 2800×2300×2500 |
FAQ
1. Q: What is a Graphite Powder Lift Mixer?
A: The Graphite Powder Lift Mixer is a specialized piece of equipment designed to mix graphite powder and other dry materials effectively. It uses a lifting mechanism to move the material in a controlled environment, ensuring uniform blending without excessive dust or contamination.
2. Q: How does a Graphite Powder Lift Mixer work?
A: The mixer typically operates by lifting the powder into a mixing chamber using a lifting mechanism or screw conveyor. Once the material is inside the mixing chamber, blades or paddles rotate to mix the graphite with other substances. The lifting action helps ensure an even mix and reduces the amount of dust generated during the mixing process.
3. Q: What is the typical lifespan of a Graphite Powder Lift Mixer?
A: With proper maintenance, a Graphite Powder Lift Mixer can last many years. The lifespan can depend on factors such as the frequency of use, the type of materials being mixed, and how well the mixer is maintained.
