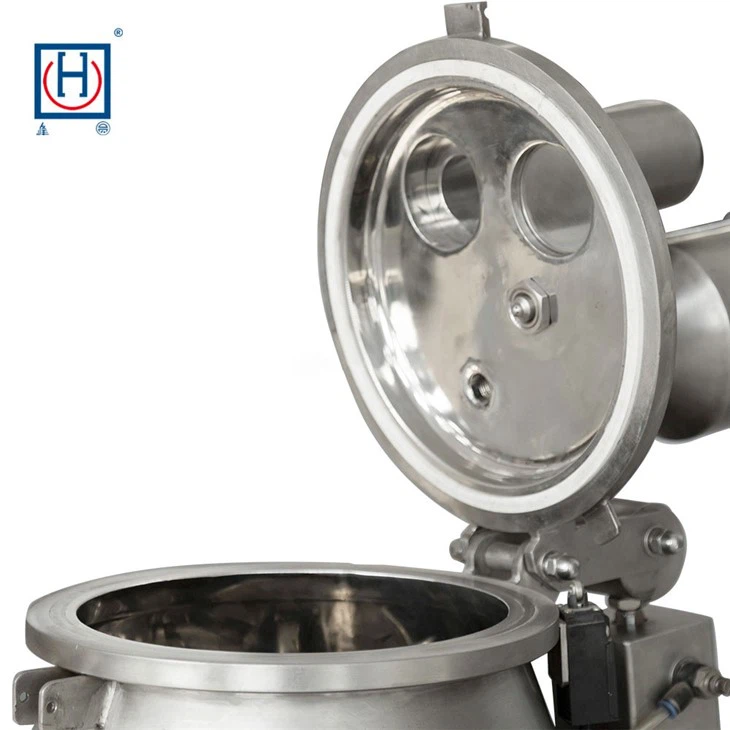

Metal Powder Wet Mixing Granulator
introduction:
The Metal Powder Wet Mixing Granulator is a specialized machine designed for the wet granulation of fine metal powders. It combines high-speed mixing and granulation in a single unit, enabling powders to form uniform and dense granules through the addition of liquid binders. This equipment is widely used in industries such as powder metallurgy, hard alloy production, chemical materials, and advanced metal processing.
working principle:

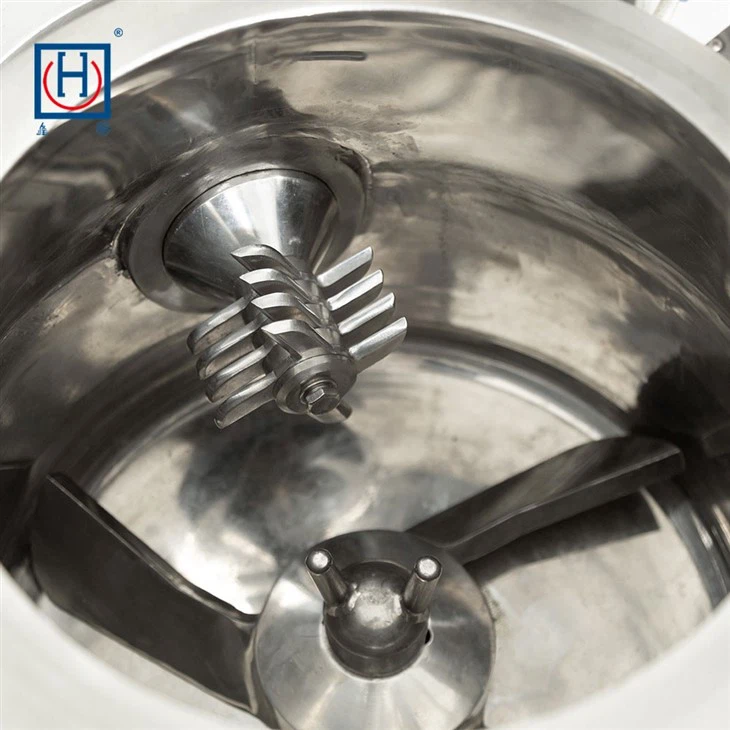

During operation, metal powders are first loaded into the mixing chamber, where a high-speed impeller ensures thorough mixing. A binder solution, such as alcohol, water, or resin solution, is then sprayed or added to the powder mixture. Under the action of the mixing impeller and high-speed chopper, the powder particles rapidly agglomerate and form granules with controlled size and density.
The Metal Powder Wet Mixing Granulator is suitable for processing a wide range of metal powders, including cobalt (Co), copper (Cu), tin (Sn), nickel (Ni), tungsten carbide (WC), iron (Fe), and other alloy powders. It improves powder flowability, reduces dust generation, and ensures better feeding performance for downstream processes such as pressing, sintering, or further processing.
Characteristic:
It is worth noting that the main purpose of installing explosion-proof devices on machines is to ensure production safety and prevent explosion accidents. When handling metal powders and flammable solvents such as alcohol, during the operation of the equipment, flammable vapors or dust may be generated. If exposed to sparks, static electricity, or high temperatures, an explosion may occur. The explosion-proof devices can effectively reduce the risk of ignition by using explosion-proof motors, explosion-proof electrical components, anti-static designs, and safety pressure relief systems, thereby protecting the safety of the equipment, personnel, and production environment. Additionally, in many industries, the use of explosion-proof configurations is an important measure that complies with industrial safety regulations and legal requirements.
Material Characteristic:
Metal particles are formed by granulating fine metal powders through a granulation process. They are typically characterized by uniform particle size, good fluidity, stable bulk density, and low dust content. The particle shape can be controlled by the process to be irregular or nearly spherical, with a general particle size range of 0.3–2 mm. Compared to the original powder, metal particles are more conducive to storage, transportation, and automated processing, and can improve the stability and production efficiency of subsequent pressing, forming, or sintering processes.
Company Information:
FAQ
1. Q: What materials can the metal powder wet mixing granulator process?
A: The machine is suitable for various fine metal powders, including cobalt (Co), copper (Cu), tin (Sn), nickel (Ni), tungsten carbide (WC), iron (Fe), and other alloy powders. It is widely used in powder metallurgy, hard alloy production, chemical materials, and advanced metal processing.
2. Q: What particle size can be achieved with this granulator?
A: The granulator typically produces granules in the range of 0.3–2 mm. With proper parameter adjustment and screening, a 0.5–1 mm particle size range can be achieved.
3. Q: What binders can be used in the wet granulation process?
A: Common binders include alcohol (ethanol or isopropanol), water, resin solutions, and other organic binders depending on the formulation requirements.
