This machine is particularly suitable for ultrafine crushing of brittle materials, with the best hardness ranging from 1 to 3 Mohs, such as non-metallic minerals such as graphite, kaolin, and white carbon black. Due to the high speed and large air intake of the micro crusher, it is suitable for crushing heat-sensitive materials such as synthetic resins, sulfur, pesticides, food, Chinese herbal medicine, phosphates, magnesium carbonate, etc.The main motor, grading motor, closed air feeder, electromagnetic pulse valve, induced draft fan, and electric control box of this machine are all explosion-proof, and nitrogen protection can be added to the pipeline, especially suitable for crushing flammable and explosive materials.

Send Inquiry

Chat Now

Product Introduction

Introduction

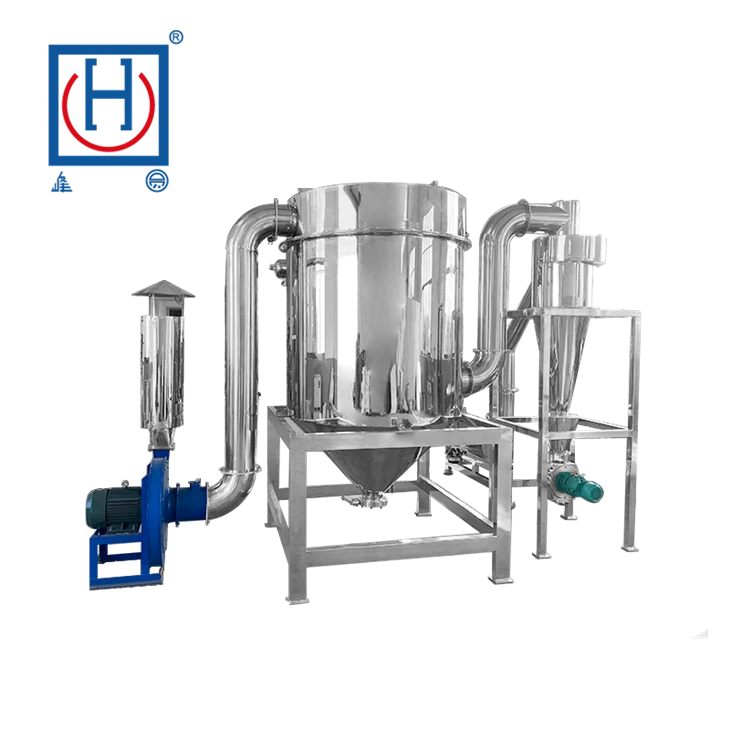

This machine is composed of three parts: the main engine, auxiliary engine, and electric control box. It is compact in design, structurally reasonable, and has air selection, no screen, and no mesh. The machine is equipped with a grading mechanism, which can complete crushing and grading in one go. Negative pressure conveying prevents the heat source generated in the chamber during the crushing operation from being generated; It is also suitable for crushing heat sensitive materials due to its intermittent discharge. This machine has a wide range of applications, with continuous production processes and adjustable discharge particle size; This machine can handle the crushing and grading of various materials such as chemicals, food, pharmaceuticals, cosmetics, dyes, resins, shells, etc. It has reached the international advanced level.

Working Principle:

The material enters the crushing chamber through the screw conveyor through the material door and is cut by high-speed rotating blades; Cutting and crushing, the material is transported into a cyclone separator through negative pressure air transportation. The dust discharged from the material is filtered and recovered by a vacuum box through a cloth bag or filter cartridge. There is no dust flying during the production process, and it can improve the utilization rate of the material and reduce enterprise costs.

Technical Parameters

Model	WFJ-15	WFJ-30	WFJ-60
Capacity(kg/h)	10-200	30-800	50-1200
Feeding size(mm)	<10	<15	<15
Output size(mm)	80-320	80-320	80-300
Total Power(kw)	14.3	38.85	69.6
Main Speed(r/min)	0-6000	0-3800	0-2800
Overall Dimension(LWH)	420012002700	664013003960	750023004530
Weight(kg)	850	1500	3200

FAQ

1.Q:What about the transportation?

A: Usually we take seaway,cause it's more convenient and cheaper.

2.Q:Can your products be customized?

A: Yes, we have a professional team which has rich experience in hydraulic press machine for waste metal recycling,so we'll try our best to satisfy your requirement.

3. Q: Do you have the products in stock?

A:Some of our standard machine will be in stock.Others delivery time will be about 15~30days.Because many products are manufactured customized.
