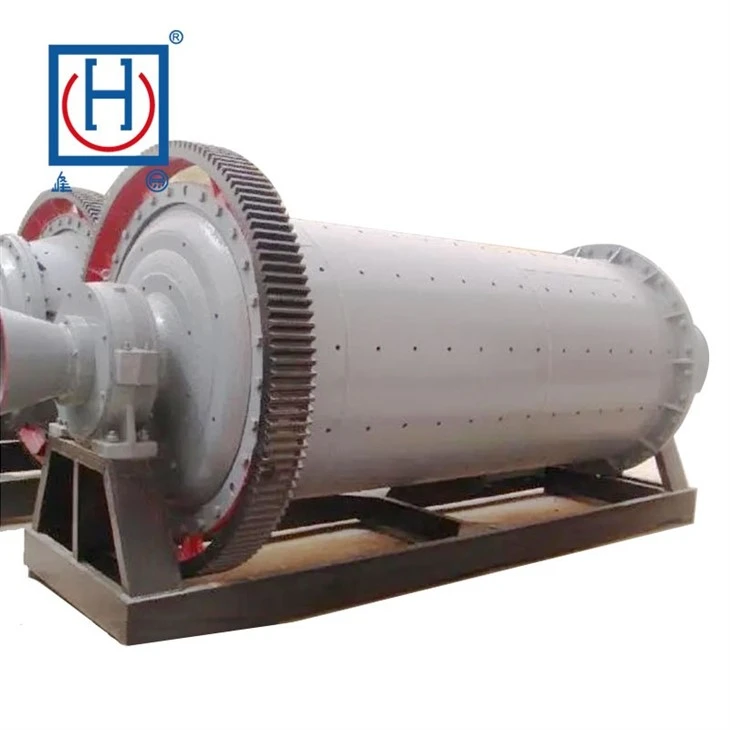

Continuous Ball Mill
Introduction:
One kind of grinding machinery used to continually grind materials during a production process is a continuous ball mill. The continuous ball mill is made to run continuously, in contrast to batch ball mills, which process materials in distinct batches. The final product is released at the other end of the mill after materials are put into it and constantly ground as they pass through it.
Working Principle:
A cylindrical shell that revolves around an axis makes up the mill.The grinding media, which are typically steel balls, are raised by rotation and subsequently fall, impacting with the material being processed, thanks to the tumbling effect created by the rotating drum inside. Because of the grinding medium's impact and friction, the materials are crushed by the rotational effect. The materials are crushed into finer particles by the frequent collisions between them and the grinding balls while the drum rotates. Additionally, rotation allows the material to flow from the inlet feeding side to the outlet discharging side in a spiral or helical pattern.
Technical Parameters-MF-Ultrafine ball mill
|
Model |
Motor Power(KW) |
Graded power(KW) |
Equipment weight(T) | Equipment size(M) | Product fineness(d97=um) |
|
MF0.83×0.5 |
22 |
2.2 |
7.5 |
4.85×2.7×2.2 |
2-100 |
| MF2.2×0.5 |
75 |
6 |
18.8 |
9.2×2.98×2.42 | 2-100 |
| MF3×0.5 | 200 |
15 |
34.2 |
10.5×3.38×3.2 | 2-100 |
| MF3.5×0.5 |
250 |
30 |
47 |
10.5×3.63×3.72 | 2-100 |
| MF4×0.5 |
355 |
44 |
67.5 |
11.4×4.6×4.21 | 2-100 |
| MF4.5×0.5 |
500 |
74 |
83.8 |
11.4×5.1×4.72 | 2-100 |
FAQ
1. Q: What is a Continuous Ball Mill?
A: The Continuous Ball Mill is a type of grinding mill that operates continuously, meaning it does not require stopping or discharging during the grinding process. It is commonly used for grinding materials like cement, ores, chemicals, and other bulk materials. It consists of a rotating drum filled with grinding media (usually steel balls) that collide with the material, causing it to break down into finer particles.
2. Q: Is a Continuous Ball Mill energy-efficient?
A: Continuous ball mills are generally more energy-efficient than batch mills because they maintain a continuous flow of material through the system, minimizing the downtime between batches. However, energy efficiency can be improved further by optimizing factors like feed rate, ball size, mill speed, and material characteristics.
3. Q: Can a Continuous Ball Mill be used for wet grinding?
A: Yes, a continuous ball mill can be used for both dry and wet grinding processes. Wet grinding is often preferred when dealing with materials that are sensitive to heat or when a finer product is required.
