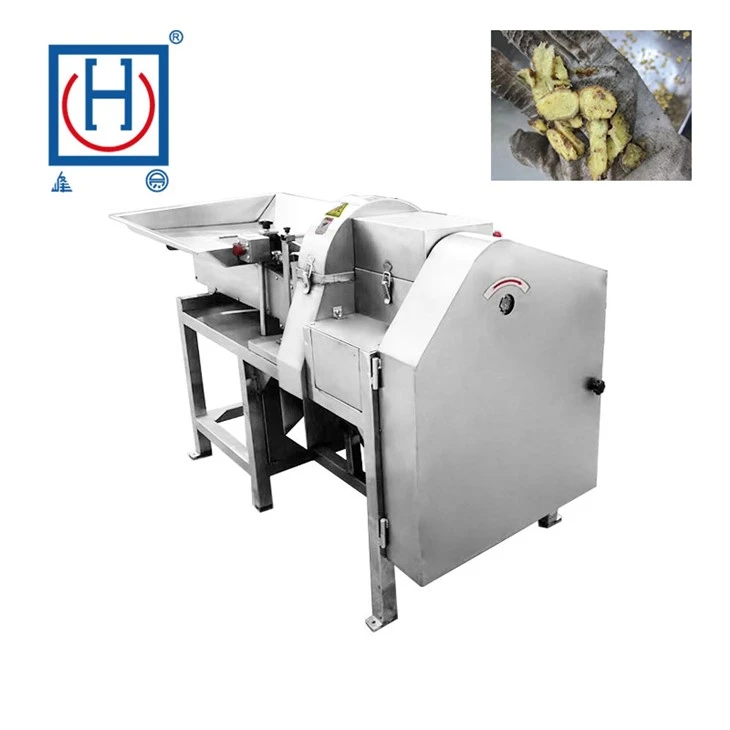

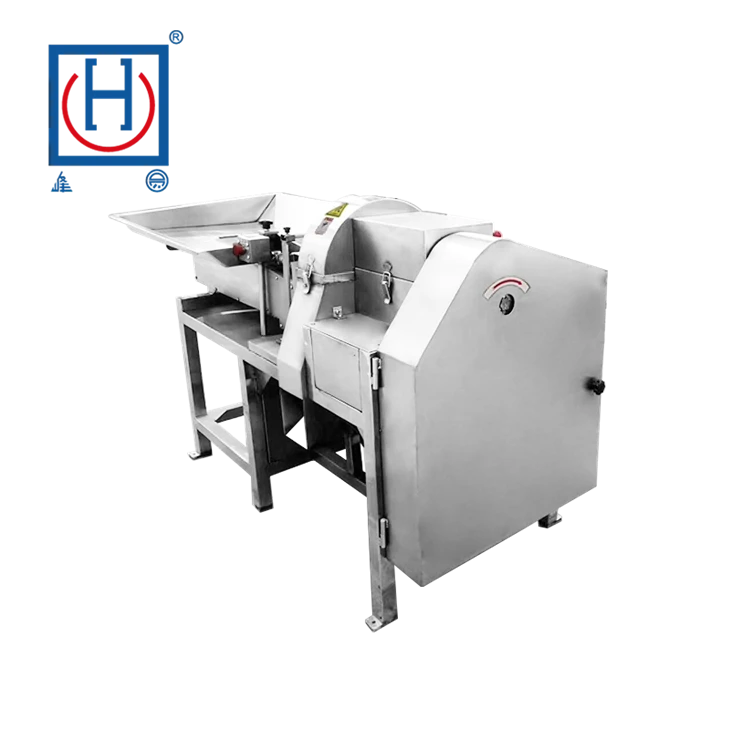

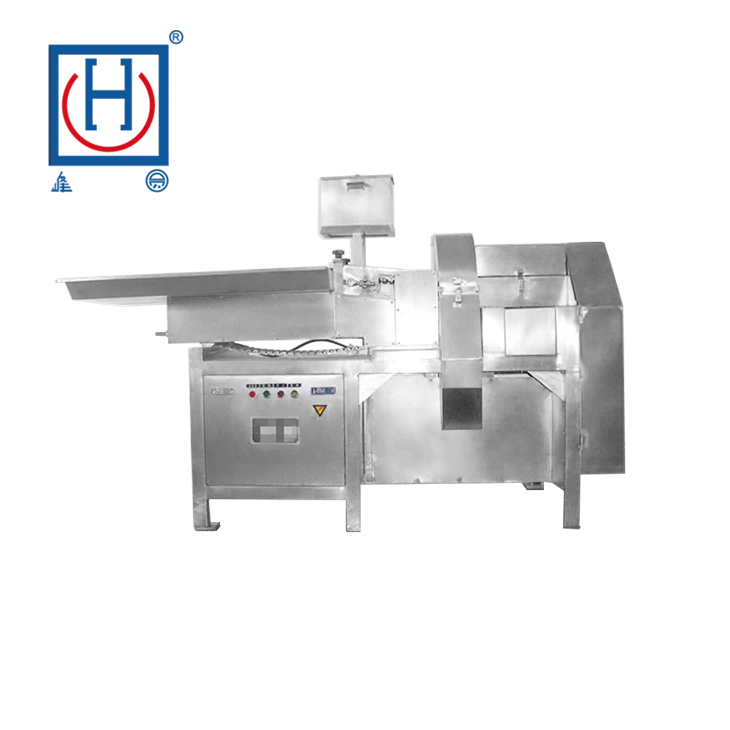

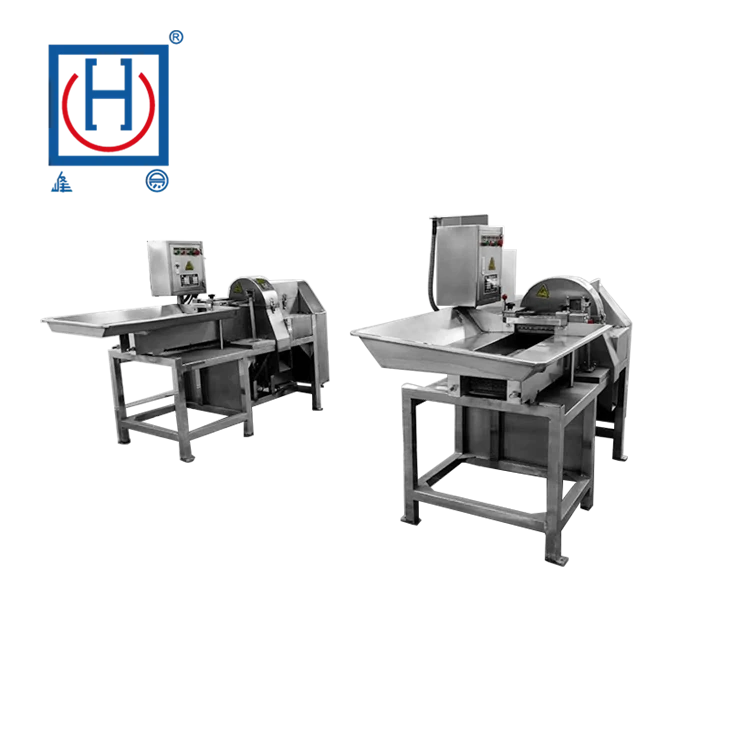

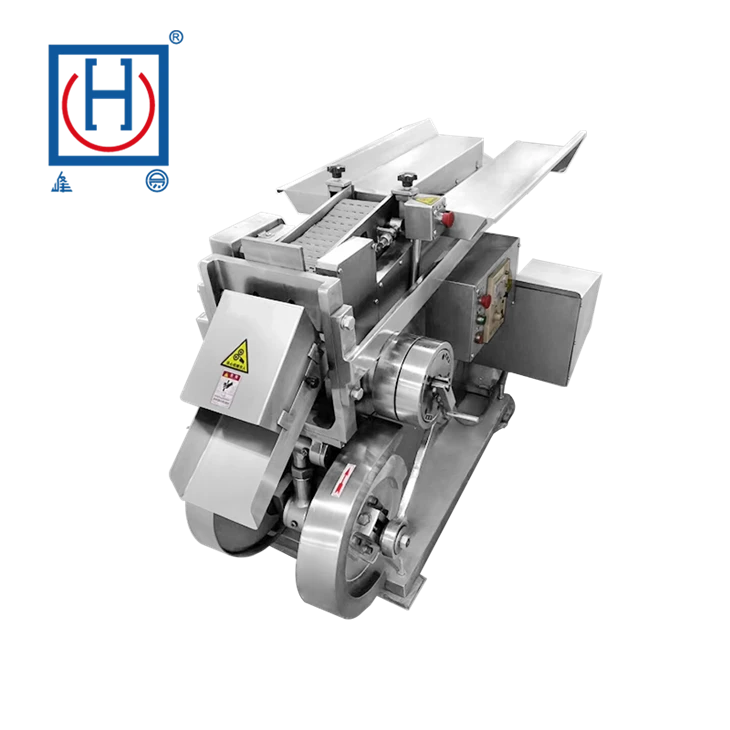

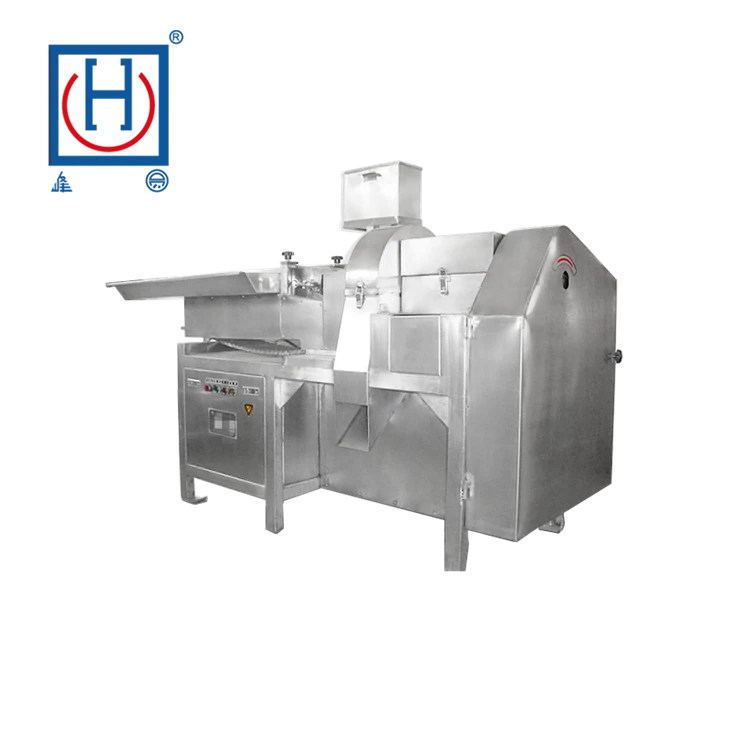

Herbal Medicine Cutter
Application:
Herbal medicine cutter is suitable for cutting traditional Chinese medicine pieces before extraction or crushing, cutting roots, fruits, leaves, grass and other Chinese medicinal materials, but also suitable for food (green hair, preserved fruit), aquatic products (kelp), tobacco/tea and other things.
Working Principle:
Herbal medicine cutter is a commonly used drug processing equipment, mainly used for cutting solid drugs or other blocky items. Its working principle can be simply described as follows:
First, the medicine or block to be cut is placed on the cutting position of the machine through the feeding device
Then, through the power provided by an electric motor or pneumatic device, the cutting tool is pushed back and forth in the horizontal direction. During the movement, the knife will cut the medicine.
The motion mode of the tool is generally reciprocating, that is, the tool cuts back and forth at the fixed point, so that the drug or block items are divided into small pieces of the required size during the cutting process.
The cutting tool can be a straight knife or a curved knife, according to different cutting requirements and the characteristics of the item to choose the appropriate tool.
At the same time, Herbal medicine cutter will also be equipped with different control systems to control the working speed of the cutting tool, cutting thickness and cutting times and other parameters to meet different processing requirements.
Features：
1, Herbal medicine cutter adopts an adjustable intermittent feed mechanism, which can cut slices or segments of any thickness between 1 and 15㎜, and simplifies the variable speed mechanism and improves reliability.
2, Herbal medicine cutter is provided with adjustable chain rack, according to the drug bubble, can adjust the Angle of the chain rack. To avoid drug blockage, the chain rack can also be lifted up 90° to remove drug residues and other impurities adhering to the chain.
3, with wedge wheel forward, reverse feeding device, drug forward, back flexible and convenient.
4, Herbal medicine cutter is convenient to adjust the knife, only need to twist a screw and a screw to obtain satisfactory results, and will not mismove after the knife.
5, Herbal medicine cutter adopts the crank rocker cutting mechanism, because the rocker is longer, the slice shape is better, generally without stubble.
6, In order to increase the cutting force and ensure the smooth cutting motion of the cutter, a large penetrating wheel is installed at one end of the crankshaft to run with the crankshaft.
7, the machine because of the large knife edge size, slice specification adjustment range, so high output, wide range of application.
8, Due to the intermittent feeding (no cutting when feeding, no cutting when feeding), the top knife and drug breaking are avoided to ensure the quality of the slice.
9, the chain tightness can be freely adjusted by adjusting screws.
Product advantage：
1, Herbal medicine cutter adopts the straight knife movement structure, the cutting force is large, saving electric energy.
2, Herbal medicine cutter adopts a live press device, which can apply to various shapes of materials and leave no residual materials.
3, Herbal medicine cutter adopts stepless speed regulation of the whole machine, which is more suitable for various cutting requirements.
4, Herbal medicine cutter can be easy to clean. Maintenance and maintenance is very convenient, wider scope of application, higher output.
Company introduction：
Our company professionally manufactures mechanism products applied in pharmaceutics, chemical industry, chemical fiber, foodstuff, and metallurgical areas, with high technology and advanced equipment. We have a modern enterprise system and combine it with enterprise culture construction, executing scientific management. Our company is committing to producing mechanism products with drying, disintegrating, sifting, mixing, granulating, and dedusting functions.
Our company has an influential technology center and strictly abides by GMP and industrial standards in production. Meanwhile, we are engaged in designing, processing, and installing various fasteners.
We adhere to the tenet of "Quality First, Consumer Uppermost", and warmly welcome customers from home and abroad to establish business relationships with us!
Technical Parameters
|
Model |
WQJ-200 |
WQJ-240 | WQJ-320 |
|
Capacity(kg/h) |
80-500 |
80-500 |
100-800 |
| Thickness of piece-cutting(mm) |
0.6(Adjustable) |
0.6(Adjustable) | 0.6(Adjustable) |
| Power(kw) | 3 |
4 |
5.5 |
| Overall Dimension(L*W*H) |
1600*620*980 |
1650*700*1050 |
1950*750*1100 |
| Weight(kg) |
550 |
700 |
950 |
Certification
FAQ
1. Q: Are you a manufacturer, trading company, or a third party?
A: We are a manufacturer, we have our own factory
2. Q: Where is your factory located?
A: Our factory address is: No.9 Yungu Road, Zhutang Town, Jiangyin City, Jiangsu Province, China.
3. Q: How can I get to your factory?
A: Our factory is near Shanghai Airport, Wuxi Shuofang Airport, and Nanjing Airport, we can pick you up at the airport.
4. Q: May I know which payment will be accepted by your company?
A: So far 100% by T/T before shipment, and 30% deposit paid by T/T, balance paid by T/T or L/C are available.
