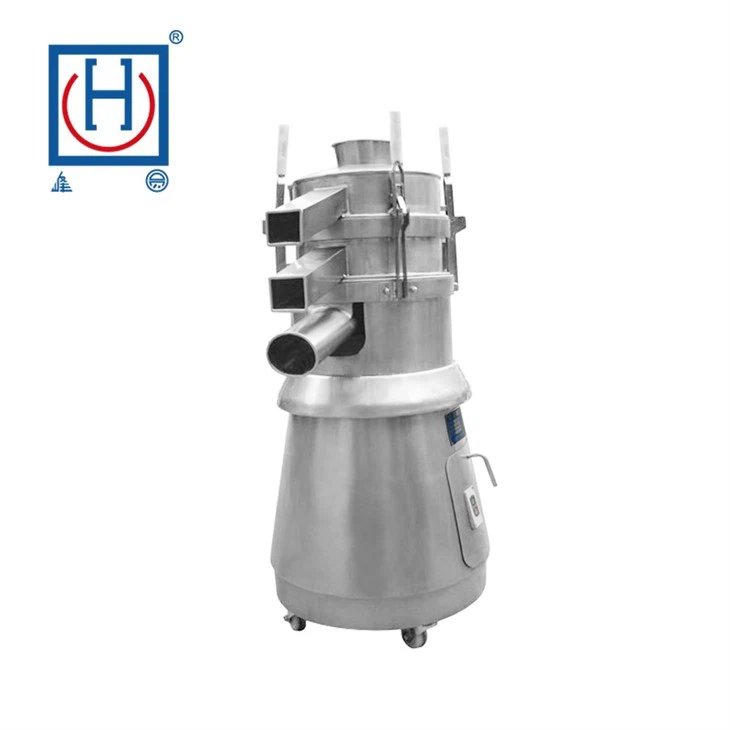

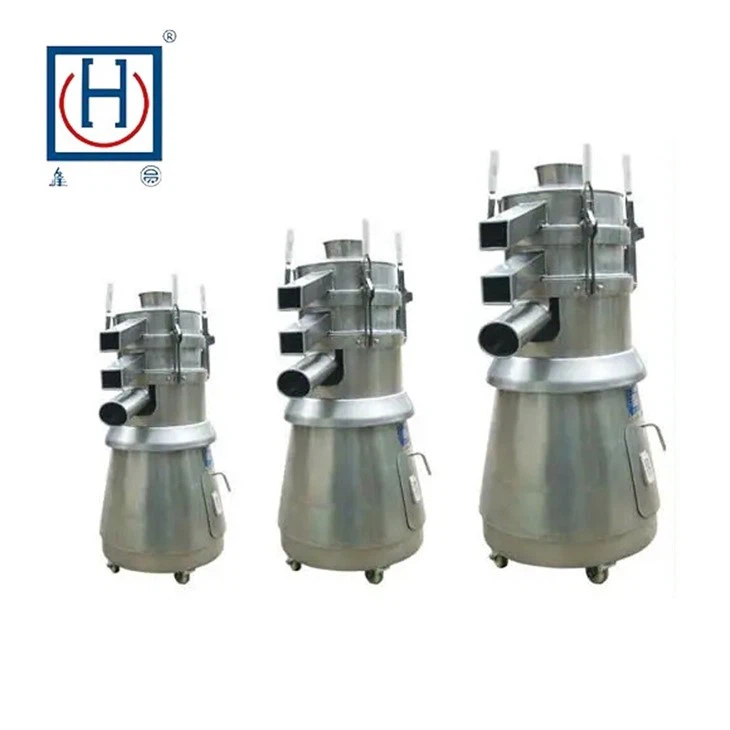

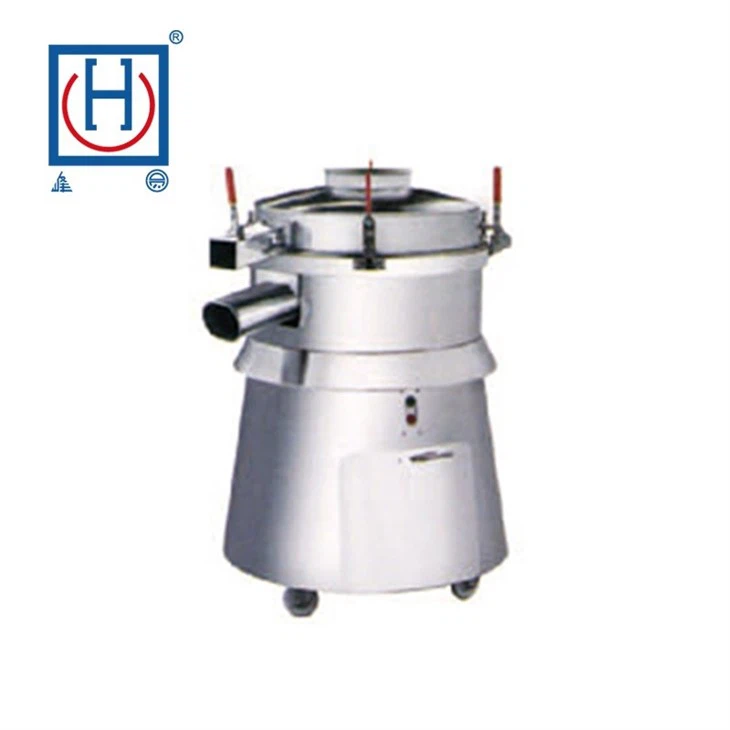

Zs515 Vibrating Screen
Introduction
ZS515 vibrating screen is an efficient screening equipment widely used in industries such as chemical, food, medicine, papermaking, metallurgy, plastic mining, coal, and construction. Its main function is to classify, grade, and separate raw materials to achieve a certain screening effect, providing high-quality raw materials for subsequent processing.
Working principle :
The design of ZS515 vibrating screen is to effectively separate the size of particles. It uses a vibration motor or exciter to generate vibration, causing the sieve plate to vibrate. The sieve plate is composed of multiple layers of sieve mesh or perforated plates, allowing particles of different sizes to pass through. The grid size and material can vary depending on the application.
The vibrating screen is equipped with an electric motor, which generates vibration through a belt transmission system. This vibration causes the material on the sieve plate to move in a controlled manner, promoting particle separation. The ZS515 vibrating screen can provide adjustable settings for vibration intensity and screen inclination angle. These adjustments help optimize screening efficiency based on the characteristics of the materials being processed.
Maintenance
Regular maintenance of the ZS515 vibrating screen typically includes lubrication of bearings, inspection of screen mesh for wear and tear, and checking the motor and belt drive system for proper functioning.
Conclusion:
The ZS515 vibrating screen is a versatile and efficient screening solution used across various industries to process different types of materials. For specific details such as technical specifications, installation guidelines, and operational recommendations, it's best to refer to the manufacturer's documentation or contact their customer support directly. They can provide precise information tailored to this particular model.
Technical parameters
| Model | ZS-600 | ZS-800 | ZS-1000 | ZS-1200 | ZS-1500 |
| Capacity(kg/h) | 80-300 | 150-2000 | 200-2900 | 300-4500 | 500-5000 |
| Mesh | 12-200 | 12-200 | 12-200 | 12-200 | 12-200 |
| Power(kw) | 0.55 | 0.75 | 1.5 | 2.2 | 3 |
| Vibration Frequency(time/min) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Overall Dimension(L*W*H)(mm) | 680*600*1100 | 1100*950*1150 | 1330*1100*1280 | 1380*1500*1320 | 1800*1800*1320 |
| Weight(kg) | 280 | 320 | 420 | 600 | 780 |
FAQ
1. Q : What is the Zs515 vibrating screen used for?
A : The Zs515 vibrating screen is used for the classification, filtration, and separation of different materials, such as ores, minerals, chemicals, food, and pharmaceuticals.
2. Q : What are the features of the Zs515 vibrating screen?
A : The Zs515 vibrating screen features a high screening efficiency, low noise, easy maintenance, and a long service life. It also has a compact design, allows for easy installation, and is customizable to fit specific requirements.
3. Q : What is the capacity of the Zs515 vibrating screen?
A : The capacity of the Zs515 vibrating screen varies depending on the material type, size, moisture content, and other factors. However, it can process up to 10 tons of material per hour on average.
