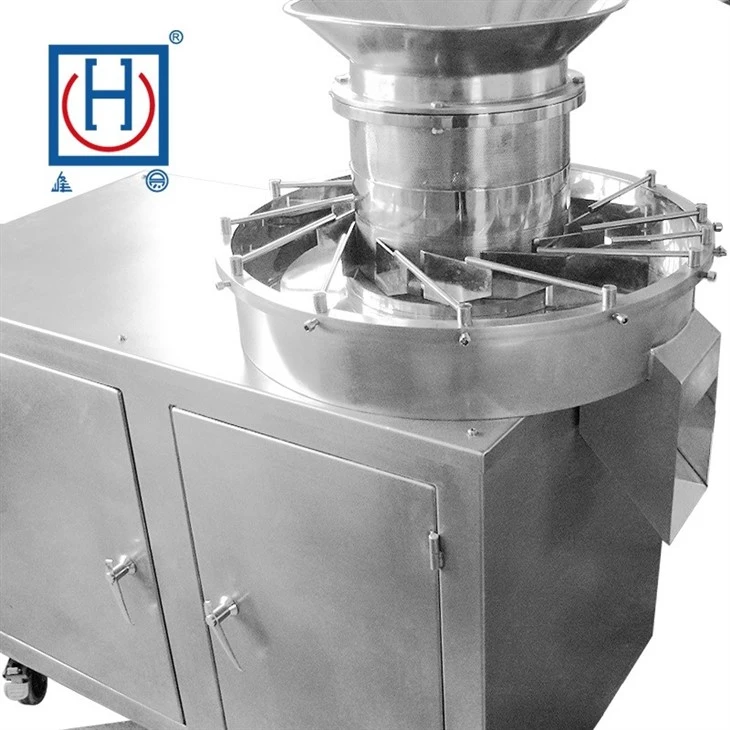

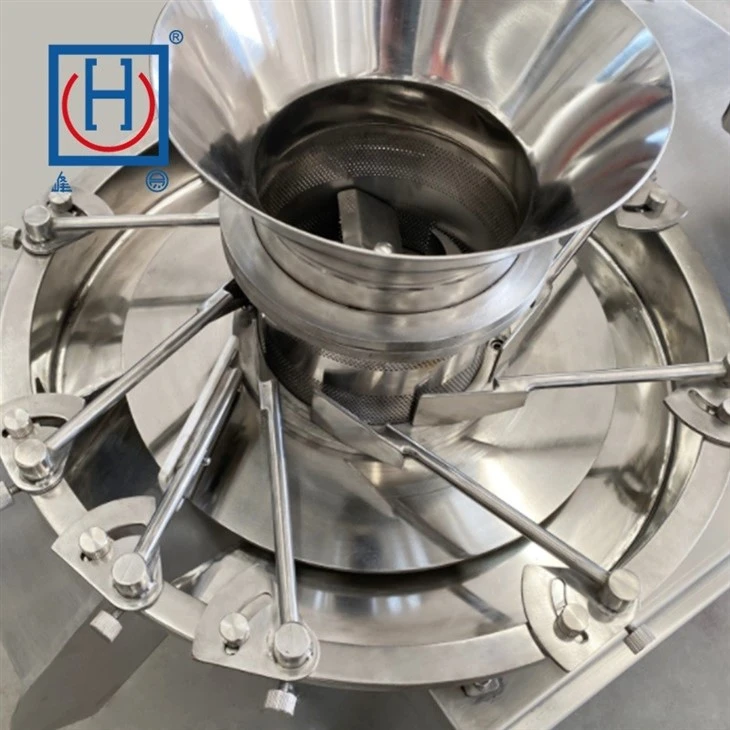

Chinese Patent Medicine Rotary Granulator
introduction
Chinese medicine pellet machine is a machine that uses the swinging effect of rotating drum to develop wet powder raw materials into pellets through a wire sieve.
Working principle
Chinese medicine pellet machine is a swinging effect with a rotating drum, through the wire sieve can be wet powder raw materials into particles, can also be widely used to crush has become a block and become ready-made particles.
The Chinese medicine pellet machine is used in the chemical field as a wet powder into particles, dried for pressing tablets, and can be crushed during storage and condensed into blocks or clumps in the chemical processing process, used in the food industry to deal with confectionery and sugar mixtures and malted milk and other products, in other industries such as ceramics, plastics and other mixtures to become formed particles.
Chinese medicine pellet machine It is not suitable for semi-solid, fluid, slurry or wear.
technical parameters
|
Model |
GZJ-150 |
GZJ-250 |
GZJ-350 |
|
Power(kw) |
1.5 |
4 |
7.5 |
|
Dimension(mm) |
150 |
250 |
350 |
|
Production(kg/h) |
30 |
200-400 |
250-500 |
|
Continous production time(h) |
Continous |
Continous |
Continous |
|
Minimun pellet diameter(mm) |
1.2-3 |
1.2-3 |
1.2-3 |
|
Knife speed(rpm) |
60 |
50 |
40 |
|
Overall Dimension(cm) |
700*400*700 |
1200*1700*1100 |
1350*800*1200 |
|
Weight(kg) |
60 |
400 |
600 |
company introduction
As an expert with more than 30 years in machinery,Fangyuan Machinery has full production lines from begin to end,which means here in this plant, you will see these raw materials how to become a pulverizer,or other finished machine.Anyway,Fangyuan Machinery generally offer around 40-50 sets of various machines delivery monthly.
fAQ
1) What's Chinese patent medicine rotary granulator?
A: Chinese patent medicine rotary granulator is a type of machine used for manufacturing Chinese patent medicine. It is designed to uniformly mix and granulate various herbal medicines to form granules that can be easily consumed by patients.
2) What are the benefits of using a Chinese patent medicine rotary granulator?
A: Firstly, it helps achieve a more uniform granule size which ensures consistency in the final product. This also improves patient compliance and convenience. Secondly, the machine is efficient and saves time in the production process. Finally, the granulator is easy to operate, and it is easy to maintain and clean.
A: The machine works by mixing various herbal medicines in the hopper, where it is then granulated into small, uniform pieces. The granules are evenly distributed onto a conveyor belt and dried to remove moisture. The dried granules are then cooled and packaged into airtight containers for distribution.
