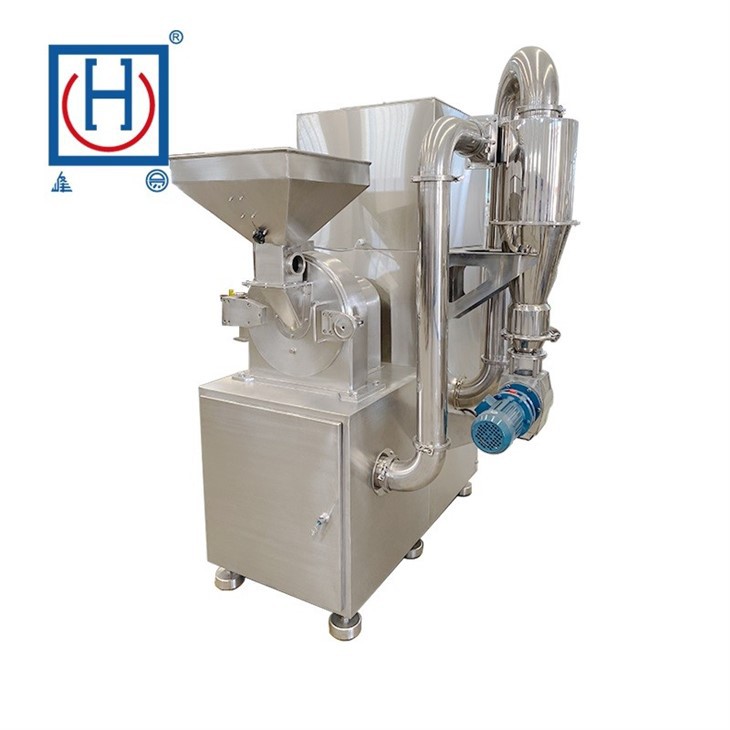

Dried Shrimp Crusher
Introduction :
When the dried shrimp crusher is spinning, the motor drives the spindle and the turbine to rotate at high speed. The turbine and the grinding block on the screen ring form a crushing and grinding pair. When the material enters the machine chamber from the hopper, the material closely fricts and strongly impacts the inner side of the turbine blade in the rotating air flow of the turbine, and grinds again in the gap between the blade and the grinding block. While crushing the material, the turbine draws in a large amount of air, which plays a role in cooling the machine, grinding the material and transporting the fine material. The fineness of the material crushing depends on the nature of the material and the size of the screen, as well as the amount of material and air passing through.
Features :
Dried shrimp crusher has strong crushing capacity, low energy consumption, and relatively small product fineness.
The crushing space is large, and the wind pressure generated when the turbine is running can not only improve the production capacity, reduce the over-crushing phenomenon, but also avoid the deposition and blockage of the screen during the crushing process of the material. The wind pressure can also easily carry away the heat generated in the crushing chamber.


Material Characteristic:
Dried shrimp powder is the dried shrimp processed into powder ingredients. Dried shrimp powder usually retains the rich flavor of shrimp and adds a special seafood flavor when used in cooking. Shrimp are rich in protein, vitamins and minerals, and dried shrimp powder retains these nutrients. Dried shrimp powder is also used as a flavor enhancer and seasoning, especially in fried rice, soups and seafood dishes. Dried shrimp powder is easier to store and maintain for a long time than fresh shrimp, and is also more convenient to use, without the need for cleaning and shucking.
| Model | 20 | 30 | 40 | 60 |
|---|---|---|---|---|
| Capacity(kg/h) | 20-120 | 30-250 | 50-450 | 80-800 |
| Rotary Speed(r/min) | 4500 | 4000 | 3500 | 2800 |
| Dia of Rotor(mm) | 200 | 300 | 400 | 600 |
| Motor Power(kw) | 4 | 7.5 | 11 | 22 |
| Output Fineness(mesh) | 20-150 | 20-150 | 20-150 | 20-150 |
| Feeding Granularity(mm) | ≤6 | ≤6 | ≤10 | ≤10 |
| Weight(kg) | 480 | 550 | 730 | 900 |
FAQ
1. Q: Why is the oil temperature of the dried shrimp crusher?
A: It may be that the oil quality of the lubricating oil does not meet the requirements or the cooling system does not play a cooling role.
2. Q: Why does the dried shrimp crusher vibrate?
A: Possibly because the rotor of the motor and the rotor of the grinder have different hearts. You can move the position of the motor left and right, or add a pad at the foot of the motor bottom to adjust the concentricity of the two rotors.
3. Q: Why does the bearing of the dried shrimp crusher overheat?
A: It may be because the two bearing seats are uneven, or the motor rotor is different from the grinder rotor, which will cause the bearing to be impacted by extra load, causing the bearing to overheat. In this case, it is necessary to immediately stop the fault to avoid early damage to the bearing.
