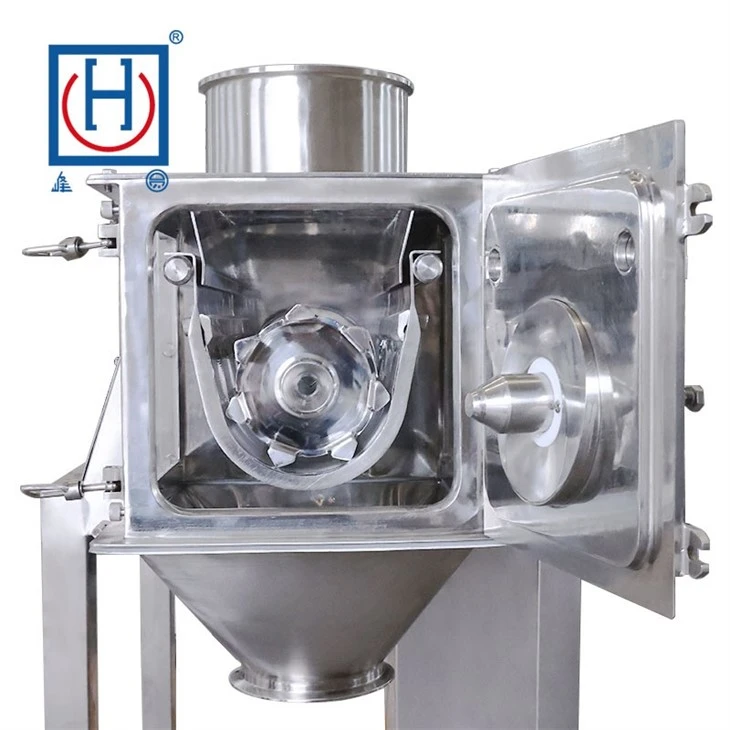

YK 160 Granulator
Introduce
The YK 160 granulator is a type of rotary drum granulator designed for the efficient granulation of powdery materials. It is known for its robust construction, high performance, and versatility in processing different types of powders, including pharmaceuticals, chemicals, and food ingredients.
Working principle
The YK 160 granulator operates by rotating a drum containing the powder and binder. As the drum rotates, the materials are mixed and agglomerated to form granules. The rotating action helps in achieving uniform granule size and ensures the efficient blending of ingredients.
Technical parameters
| Single Head Granulator Technical Parameters | |||
| Model | YK-100 | YK-160 | YK-160B |
| Production Capacity(kg/h) | 30-200 | 100-300 | 100 |
| Power(kw) | 1.5 | 3 | 5.5 |
| Roller Speed(rpm) | 65 | 55 | 55 |
| Swing Angle(360°) | 360° | 360° | 360° |
| Roller Diameter(mm) | 100 | 160 | 160 |
| Dimensions(mm) | 700*400*1050 | 1000*800*1300 | 100*800*1300 |
| Weight(kg) | 280 | 380 | 450 |
| Double Head Granulator Technical Parameters | ||||
| Model | YK-100 | YK-160 | YK-200 | YK-320 |
| Production Capacity(kg/h) | 150-400 | 300-600 | 350-1000 | 350-1300 |
| Power(kw) | 4 | 5.5 | 7.5 | 11 |
| Roller Speed(rpm) | 55 | 55 | 50 | 45 |
| Swing Angle(360°) | 360° | 360° | 360° | 360° |
| Roller Diameter(mm) | 100 | 160 | 200 | 320 |
| Dimensions(mm) | 1050*800*1300 | 1100*900*1350 | 1200*1050*1500 | 1858*1100*1200 |
| Weight(kg) | 420 | 650 | 850 | 1100 |
Application
Pharmaceuticals: For granulating pharmaceutical powders into uniform granules.
Chemicals: Suitable for producing granules from chemical powders.
Food Industry: Used for granulating food ingredients and additives.
Agriculture: Granulates fertilizers and other agricultural products.
Advantages
Uniform Granule Size: Produces granules of consistent size, enhancing product quality.
High Efficiency: Capable of handling large volumes of material with high efficiency.
Versatility: Can be used for a wide range of materials and applications.
User-Friendly: Features intuitive controls and settings for ease of operation.
FAQ
1. Q: What is the YK 160 granulator used for?
A: The YK 160 granulator is typically used for the granulation of powders, including pharmaceuticals, chemicals, and food products. It helps in forming uniform granules from powdery materials.
2. Q: What's the production Capacity of yk 160 granulator machine?
A: 100-300kg/h.
3. Q: What's the power of yk 160 granulator machine?
A: The power is 3kw.
