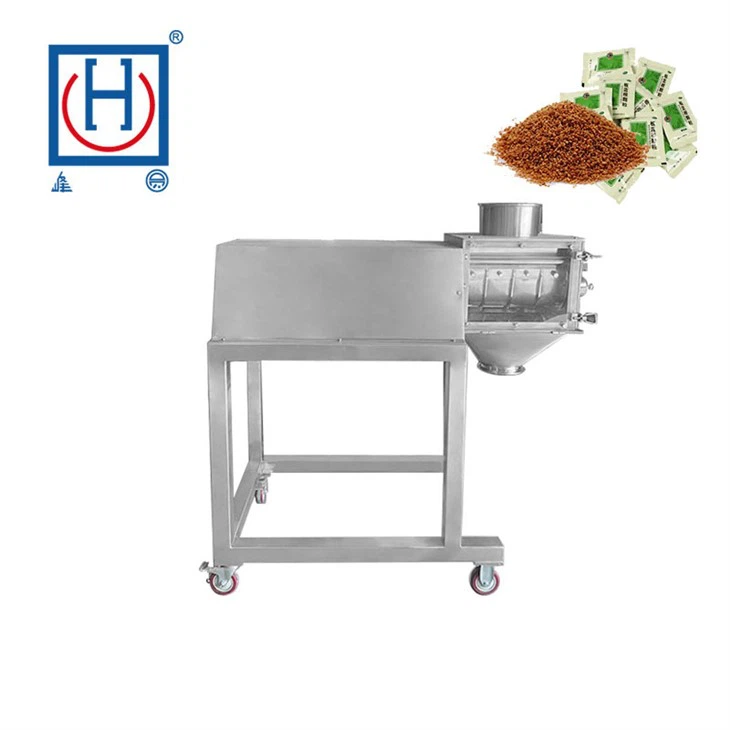

Oscillating Granulator Pharma
Introduce

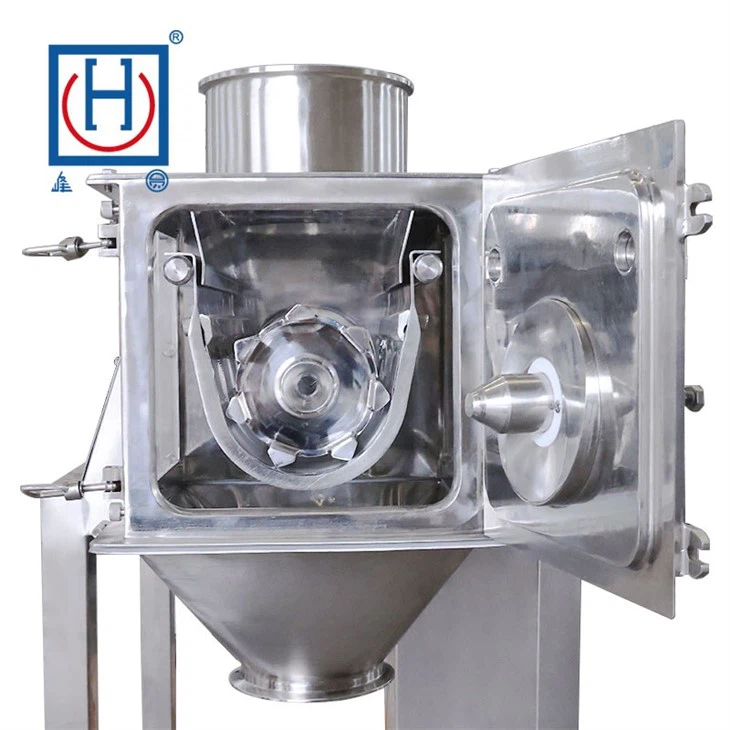

The oscillating granulator pharma is a vital machine in pharmaceutical manufacturing, designed for the size reduction of dry granules into uniform-sized particles suitable for compression into tablets. This equipment operates on the principle of oscillation, where a rotor with blades rotates at high speeds within a stationary screen or sieve. The granules fed into the machine are continuously cut and forced through the sieve, resulting in granules of consistent size.
The granulator is simple in structure, and the traditional expansion network is replaced by the net bracket, which is more convenient to install and use.

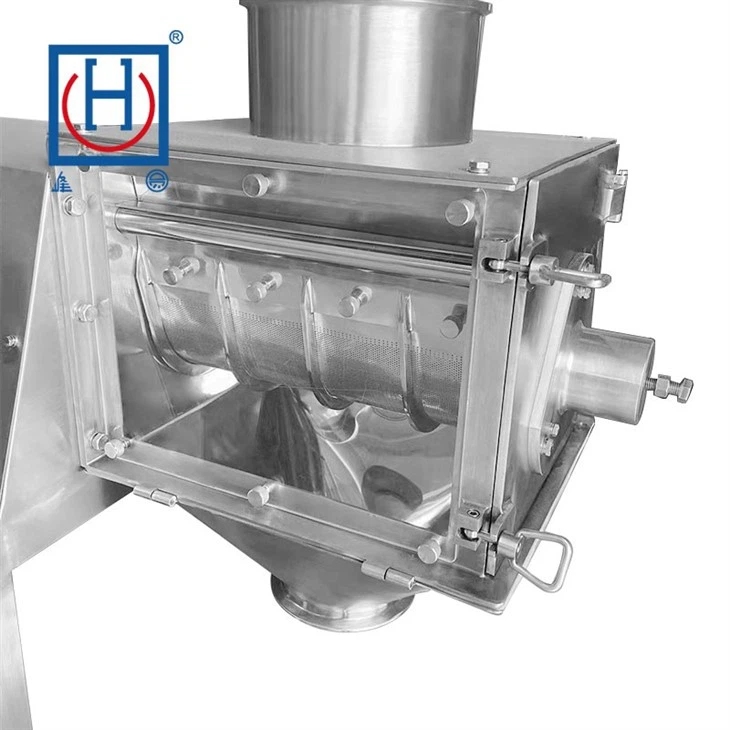

The granulator uses a large number of quick-disconnecting structures, and the net bracket and swinging head can be directly extracted, which greatly facilitates daily maintenance and cleaning.
Working principle
Technical parameters
| Single Head Granulator Technical Parameters | |||
| Model | YK-100 | YK-160 | YK-160B |
| Production Capacity(kg/h) | 30-200 | 100-300 | 100 |
| Power(kw) | 1.5 | 3 | 5.5 |
| Roller Speed(rpm) | 65 | 55 | 55 |
| Swing Angle(360°) | 360° | 360° | 360° |
| Roller Diameter(mm) | 100 | 160 | 160 |
| Dimensions(mm) | 700*400*1050 | 1000*800*1300 | 100*800*1300 |
| Weight(kg) | 280 | 380 | 450 |
| Double Head Granulator Technical Parameters | ||||
| Model | YK-100 | YK-160 | YK-200 | YK-320 |
| Production Capacity(kg/h) | 150-400 | 300-600 | 350-1000 | 350-1300 |
| Power(kw) | 4 | 5.5 | 7.5 | 11 |
| Roller Speed(rpm) | 55 | 55 | 50 | 45 |
| Swing Angle(360°) | 360° | 360° | 360° | 360° |
| Roller Diameter(mm) | 100 | 160 | 200 | 320 |
| Dimensions(mm) | 1050*800*1300 | 1100*900*1350 | 1200*1050*1500 | 1858*1100*1200 |
| Weight(kg) | 420 | 650 | 850 | 1100 |
Advantages
Oscillating granulator pharma is a widely used equipment in pharmaceutical, chemical, food and other industries, its main features include the following aspects:
1. Simple structure and convenient operation
Oscillating granulator pharma has simple structure, mainly composed of feeding, granulation, screening and other parts, reasonable design, convenient operation. When used, it is only necessary to add the raw material to the feed hopper, and after processing by the granulator, the granular material can be obtained. The whole operation process is simple and easy to understand, and does not require too much professional skills.
2. Good granulation effect and high yield
The oscillating granulator pharma adopts a unique granulation principle, cutting the raw material into small pieces through a high-speed rotating blade, and then compressing the small pieces of raw material into pellets through the granulator. This granulation method not only has good effect, but also has high yield, which can meet the needs of large-scale production.
3. Wide range of application, strong adjustment
Oscillating granulator pharma is suitable for a variety of raw materials and products, such as pharmaceutical, chemical, food and other industries of raw materials, intermediates and products granulation. At the same time, the granulation parameters of the equipment are highly adjustable, and can be adjusted according to different raw materials and products to meet different production needs.
4. High degree of automation, reduce manual intervention
Oscillating granulator pharma adopts automatic control system, which can realize automatic control and adjustment of equipment. In the production process, only a small number of workers are required to operate and control, which greatly reduces manual intervention and improves production efficiency and product quality.
5. Clean and hygienic, in line with GMP requirements
Oscillating granulator pharma made of stainless steel, reasonable internal structure, easy to clean and maintain. At the same time, the equipment is also equipped with a dust removal system and cleaning device, which can effectively reduce dust and odor, in accordance with GMP and other regulations.
FAQ
1. Q: What is an oscillating granulator pharma?
A: The oscillating granulator pharma is a pharmaceutical machine used for size reduction of dry granules into smaller particles. It operates by granulating the material between two serrated rollers that oscillate at high speeds.
2. Q: What materials can be treated with an oscillating granulator pharma?
A: It is mainly used for dry granulation of pharmaceutical powders and particles.
3. Q: What sizes of granules can an oscillating granulator pharma produce?
A: Depending on the screen size and rotor speed, an oscillating granulator can produce granules ranging from coarse to fine sizes suitable for different pharmaceutical applications.
